OpenPLC on SL-IoT-BOX with VisionSOM-6ULL

---

OpenPLC runtime

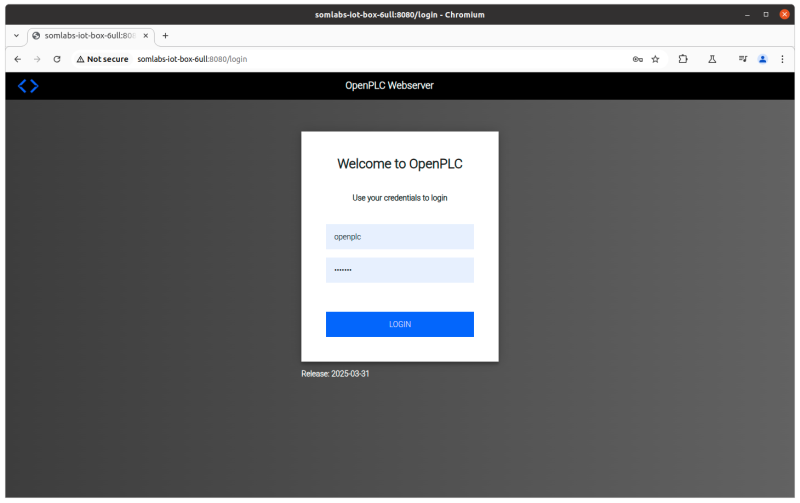

The default Debian system image for SL-IoT-BOX with VisionSOM-6ULL has OpenPLC runtime installed and enabled (https://autonomylogic.com/docs/openplc-overview/). After running the system, the OpenPLC webserver can be accessed using the network name or IP address with 8080 port:

• http://somlabs-iot-box-6ull:8080/login
• <IP address>:8080

The IP address can be checked after logging to the serial console as root (password: root) or as som (password: som) and calling ip a command.

The default webserver login credentials are:

• username: openplc
• password: openplc

Setting hardware

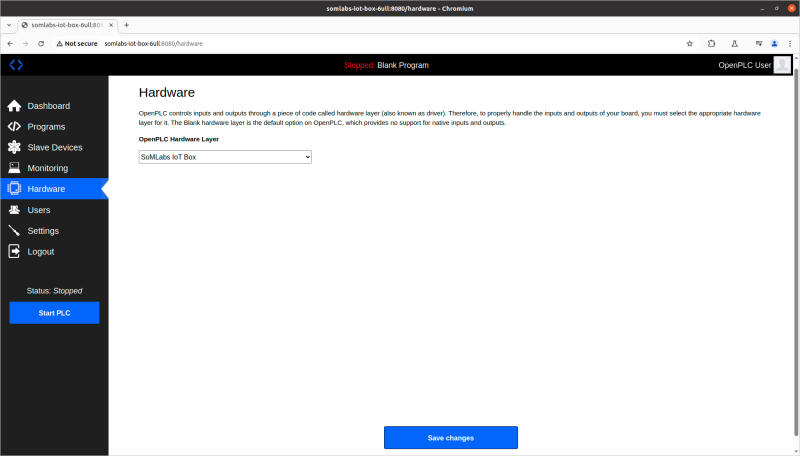

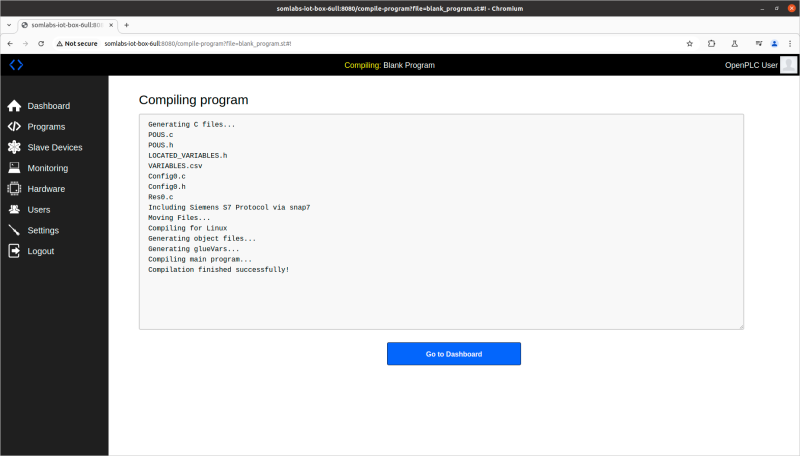

OpenPLC requires correct hardware driver to support hardware inputs and outputs. The driver for the SL-IoT-BOX is called SoMLabs IoT Box and should be selected in Hardware window. After clicking Save changes the driver will be compiled.

SL-IoT-BOX has six binary outputs and four binary inputs configured for OpenPLC programs. They are mapped as follows:

OpenPLC address	GPIO	Connector	Function
%IX0.0	GPIO3_IO5	J6A_2	Digital input
%IX0.1	GPIO3_IO11	J6A_3	Digital input
%IX0.2	GPIO3_IO4	J6A_4	Digital input
%IX0.3	GPIO3_IO6	J6A_5	Digital input
%QX0.0	GPIO1_IO14	J5A_2	Digital output
%QX0.1	GPIO1_IO26	J5A_3	Digital output
%QX0.2	GPIO1_IO22	J5A_4	Digital output
%QX0.3	GPIO1_IO12	J5A_5	Digital output
%QX0.4	GPIO1_IO11	J2_4-6	Relay output
%QX0.5	GPIO1_IO15	J2_1-3	Relay output

Demo application

OpenPLC runtime executes programs built using OpenPLC IDE (https://autonomylogic.com/). The example project and pre-compiled program can be downloaded here: Openplc_6ull_demo.zip

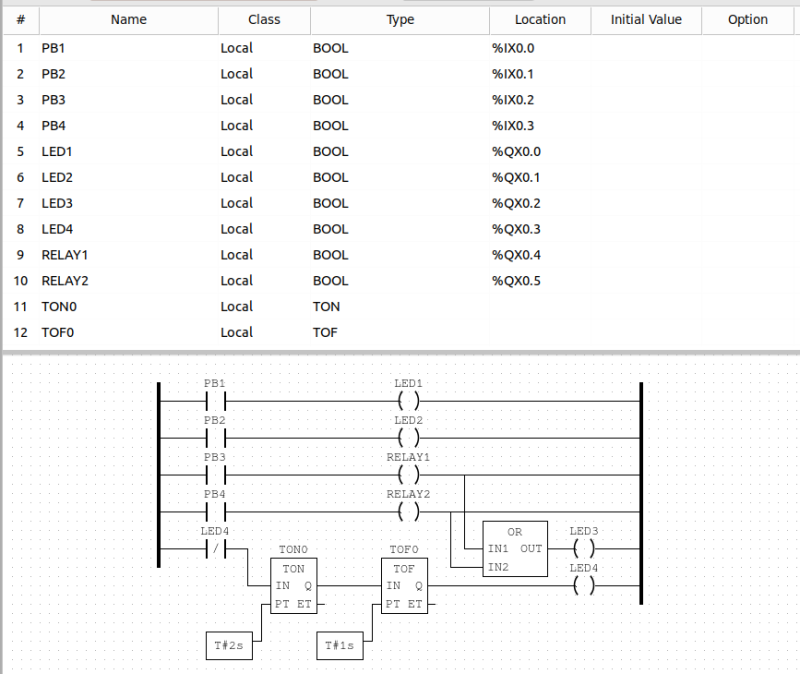

This example uses all four binary inputs to control binary outputs and two relays as shown on the project scheme.

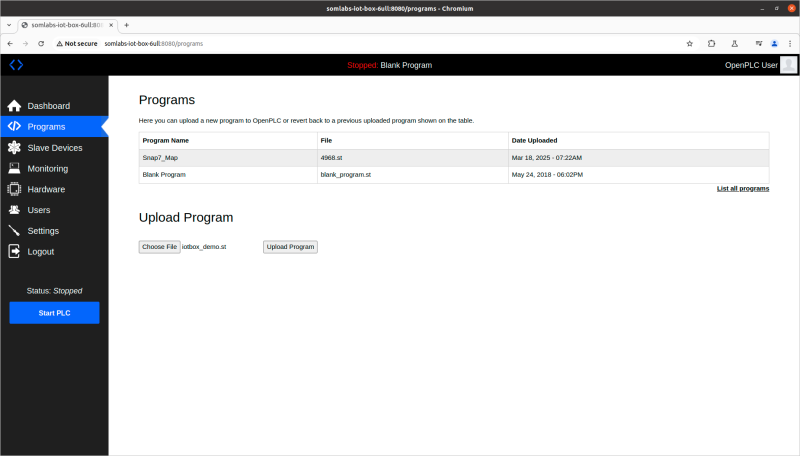

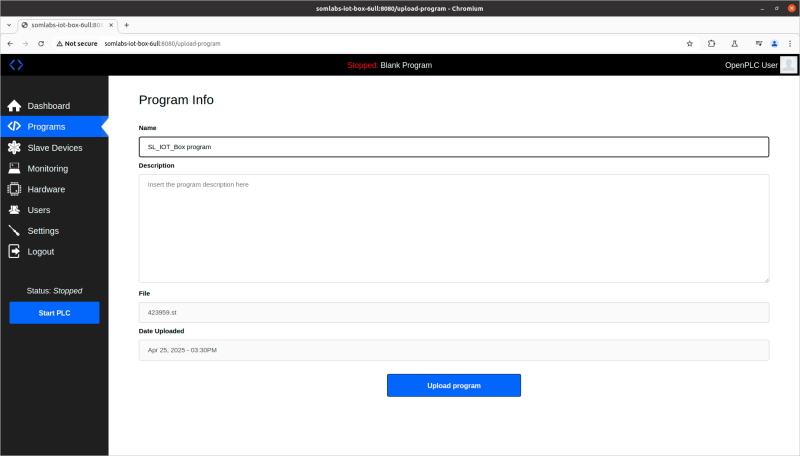

It can be uploaded to SL-IoT-BOX OpenPLC runtime in the Programs window:

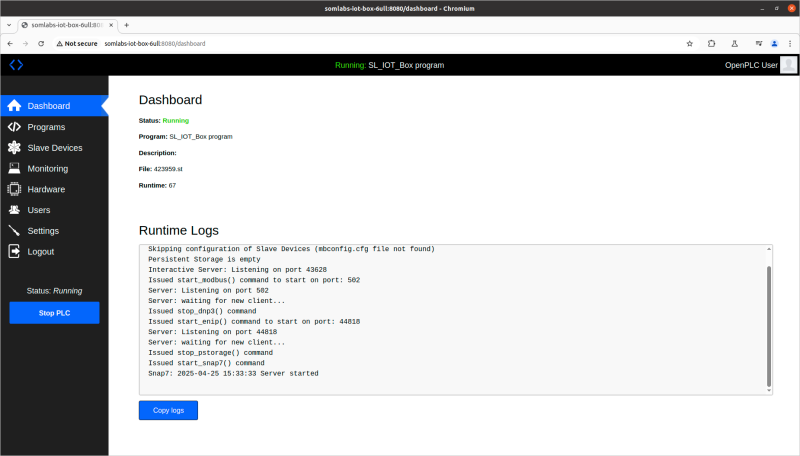

After compilation the project can be run using the Start PLC button in Dashboard window

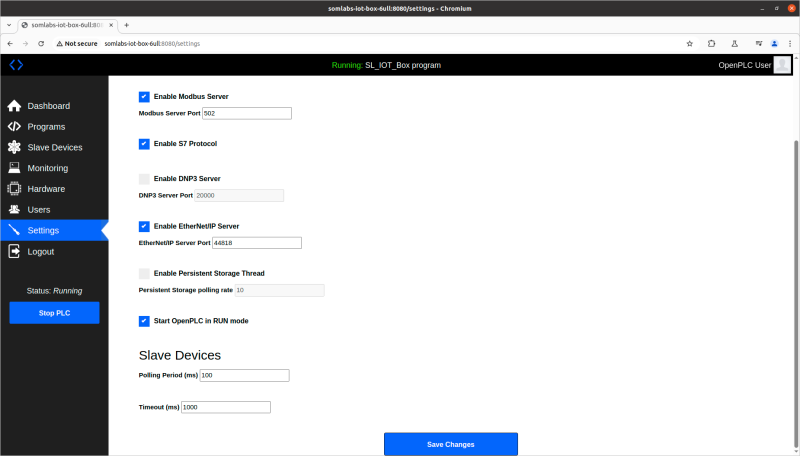

The program autostart after system boot can be enabled in the Settings window
